泊衡方管生產線異型管機加工機器
工藝流程
開卷→立式活套→校平→軋制成型→高頻焊接→刮刀→冷卻 →定徑→矯直→飛鋸切料→下料
|
Model |
Tube O.D (mm) |
Thickness (mm) |
Square&Rectangle (mm) |
Thickness (mm) |
Speed (m/min) |
|
HG16 |
φ6~16 |
0.2~0.8 |
|
|
30~120 |
|
HG20 |
φ7~20 |
0.2~1.0 |
|
|
30~120 |
|
HG25 |
φ9~25.4 |
0.25~1.2 |
|
|
30~120 |
|
HG32 |
φ10~32 |
0.25~1.5 |
8X8~25X25 |
0.25~1.2 |
30~120 |
|
HG32 |
|
0.3~2.0 |
10X6~30x20 |
0.3~1.5 |
30~100 |
|
HG40 |
φ12.7~40 |
0.3~1.8 |
10x10~30x30 |
0.3~1.5 |
30~110 |
|
HG40 |
|
0.4~2.0 |
|
0.4~1.5 |
30~100 |
|
HG50 |
φ16~50.8 |
0.4~1.5 |
12.7X12.7~40x40 |
0.4~1.2 |
30~110 |
|
HG50 |
|
0.5~2.0 |
|
0.5~1.5 |
30~90 |
|
HG50 |
|
0.6~2.5 |
|
0.6~2.0 |
30~80 |
|
HG63 |
φ19.05~63.5 |
0.6~2.0 |
15X15~50x50 |
0.6~1.5 |
30~90 |
|
HG63 |
|
0.7~3.0 |
|
0.7~2.5 |
30~80 |
|
HG63 |
|
0.8~4.0 |
|
0.8~3.0 |
20~70 |
|
HG76 |
φ25.4~76.2 |
0.8~2.5 |
20x20~60x60 |
0.8~2.0 |
30~90 |
|
HG76 |
|
0.8~3.5 |
|
0.8~3.0 |
30~80 |
|
HG76 |
|
0.8~4.0 |
|
0.8~3.5 |
20~70 |
|
HG95 |
φ30~90 |
0.8~3.0 |
25X25~70x70 |
0.8~2.5 |
30~90 |
|
HG95 |
|
0.8~3.5 |
|
0.8~3.0 |
30~80 |
|
HG95 |
|
0.8~4.0 |
|
0.8~3.5 |
20~70 |
|
HG102 |
φ31.8~101.6 |
1.0~3.0 |
25X25~80x80 |
1.0~2.5 |
30~90 |
|
HG102 |
|
1.0~3.75 |
|
1.0~3.0 |
30~80 |
|
HG102 |
|
1.0~4.25 |
|
1.0~3.5 |
20~70 |
|
HG114 |
φ35~114.3 |
1.0~3.0 |
30x30~90x90 |
1.0~2.5 |
30~80 |
|
HG114 |
|
1.2~4.25 |
|
1.2~4.0 |
20~70 |
|
HG127 |
φ40~127 |
1.2~3.5 |
30x30~100x100 |
1.2~3.0 |
20~70 |
|
HG127 |
|
1.5~5.0 |
|
1.5~4.5 |
15~60 |
|
HG140 |
φ50~141.3 |
1.2~4.0 |
40x40~110x100 |
1.2~3.5 |
15~60 |
|
HG140 |
|
1.5~5.5 |
|
1.5~5.0 |
15~60 |
|
HG168 |
φ60~168.3 |
1.5~5.0 |
50x50~130x130 |
1.5~4.5 |
15~50 |
|
HG168 |
|
2.0~6.0 |
|
2.0~5.5 |
15~50 |
|
HG168 |
φ76.2~168.3 |
2.5~8.0 |
60x60~130x130 |
2.5~7.0 |
10~40 |
|
HG219 |
φ89~219.1 |
2.0~6.0 |
70x70~160x160 |
2.0~5.5 |
10~40 |
|
HG219 |
|
3.0~8.0 |
|
3.0~7.5 |
10~40 |
|
HG219 |
|
4.0~10.0 |
|
4.0~9.0 |
10~40 |
|
HG273 |
φ114.3~273 |
4.0~10.0 |
90x90~200x200 |
4.0~9.0 |
10~40 |
|
HG273 |
|
4.5~12.0 |
|
4.5~11.0 |
10~35 |
高頻焊管機是以帶鋼為原料，經開卷、成型、高頻焊接、解決焊瘤、定徑、校直、切斷等一系列制管工序制造出圓鋼管或各樣式一行鋼管的成套設備。采用輥式成型將帶鋼冷彎加工成圓坯，通過高頻感應加熱將焊縫擠壓形成圓管，在經過定徑加工生產出各樣式標準規格的圓管、方矩形管。
高頻焊管用途：
焊管，直縫高頻焊接鋼管具有工藝相對簡單，速度快連續生產的特點，在民用建筑、石化、輕工等部門有許多用途。多用于輸送低壓流體或做成各樣式工程構件及輕工產品。

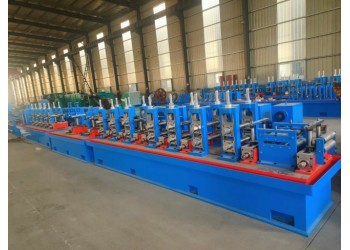

泊衡鍍鋅焊管生產線設備供應
